Out of stockRail Mount Meters (Class 1)
Ecolec Rail Mount Meter 1 + N

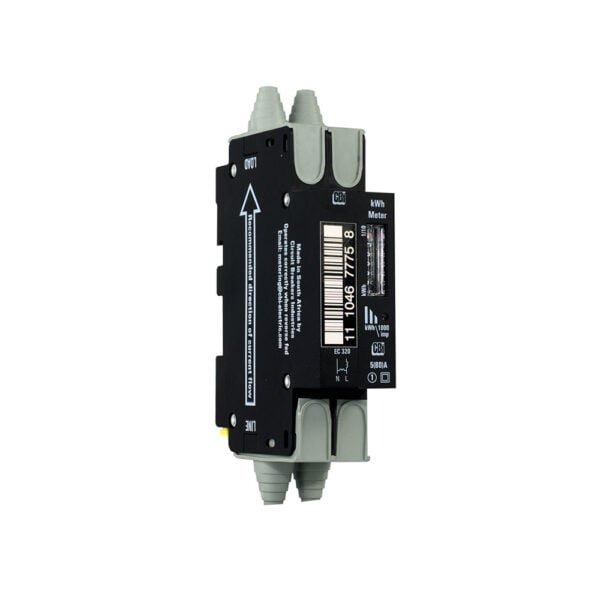

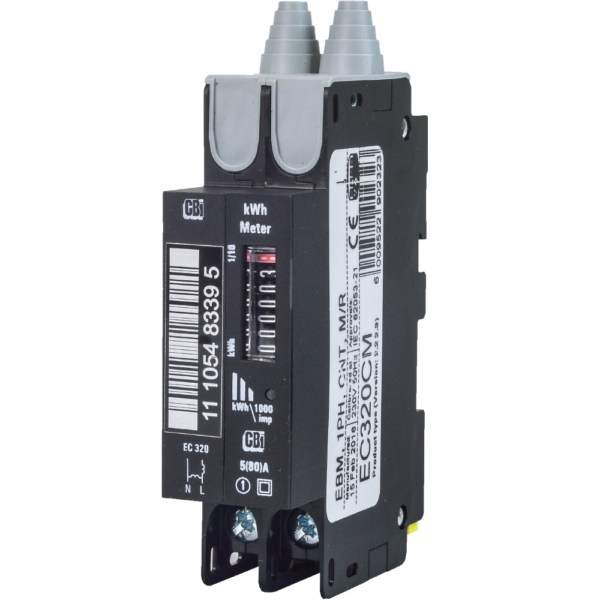

Ecolec 300 Rail Mount Energy Meters
The Ecolec 300 series is a rail mounted, compact, Class 1 electricity meter, available as a single or three phase meter showing the consumption of the installation. The compact rail mounted meters comply with SANS 1799 : 2004.
These meters fit on a DIN rail and the CBI Mini Rail. The DIN version is grey in colour and has a 45 mm front escutcheon. The dual (DIN and CBI Mini Rail) mount version is black in colour and has a 57 mm front escutcheon. The display is an electro-mechanical counter with a seven digit indication of energy consumed to 1 / 10 kWh. A dual colour lamp shows the rate of consumption and confirms the presence of incoming power supply and some unsafe / error conditions. They are supplied with anti-tamper terminal protection plugs.
These are compact in size and can be mounted next to incoming circuit breakers. They drastically reduce enclosure costs. The meter is reverse feedable and measures consumption correctly. It has a LIN bus terminal for communicating and requesting data remotely (up to 20 addressable meters on one bus).
Out of stock
Rail Mount Meters (Class 1)
Ecolec Rail Mount Meter 1 + N
Features
• SANS 1799 class-1 electricity meters
• Class 1: accuracy < 1%
• Single and three phase alternatives
• Fits all CBI Mini rail distribution boards
• 7 Digit tamper-proof counter
• Anti-tamper terminal protection plugs
• Also available in 120 V / 60 Hz
• LED status and kWh consumption indicator
• Remote monitoring: LIN bus
• IP-45 rating
• 57 mm (dual mount) escutcheon
Applications
• Residential
• Commercial
• Rural electrification
