Available for Quotation
Out of stock

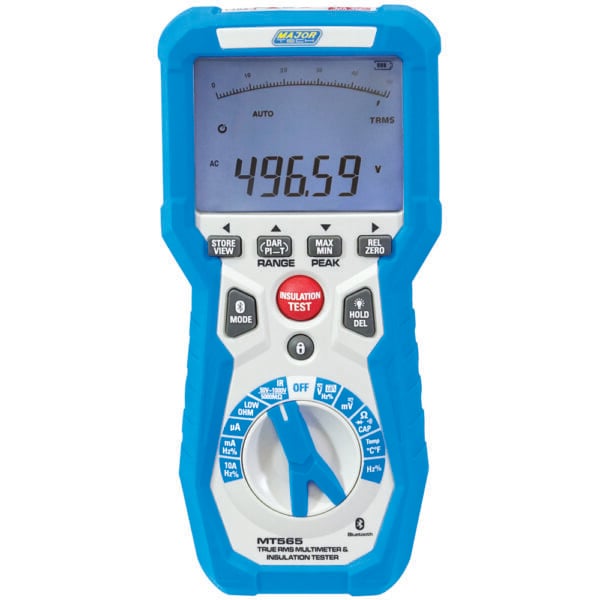

Out of stockThe MT565 is a combination of a True RMS multimeter and an Insulation Continuity tester. The MT565 measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature. The Low pass filter can accurately measure variable frequency drive (VFD) signals. The insulation tester offers 50V, 100V, 250V, 500V, and 1000V ranges with an insulation resistance up to 5000MΩ, DAR and Auto PI functions with adjustable time setting and an auto discharge. The Low Ohm function offers a resolution of 1mA and an open circuit voltage of 5V. The meter has a 50 000 count LCD dual display with an analogue bar graph, and the CAT IV 600V rating ensures the highest level of safety. The unit offers Bluetooth communication and an internal memory to store and transfer information. The Bluetooth app is available on both Android and iOS platforms. This provides maximum versatility and a wide range of features for both trouble shooting and preventative maintenance electricians.
Accessories:
Test Leads
Remote Test Leads
Black Croc Lead
Hard Carrying Case
6 x AA Batteries
Instruction Manual
Out of stock
| Weight | 1.2 kg |
|---|---|
| Dimensions | 186 × 80 × 255 mm |
| DC Voltage | |
| DC Voltage resolution | |
| DC Voltage accuracy | |
| AC Voltage | |
| AC Voltage resolution | |
| AC voltage accuracy | |
| DC Current | |
| DC Current resolution | |
| DC Current accuracy | |
| AC Current | |
| AC current resolution | |
| AC Current accuracy | |
| Duty Cycle | |
| Duty Cycle resolution | |
| Duty Cycle accuracy | |
| Resistance | |
| Resistance resolution | |
| Resistance accuracy | |
| Frequency | |
| Frequency resolution | |
| Frequency accuracy | |
| Capacitance | |
| Capacitance resolution | |
| Capacitance accuracy | |
| Temperature | |
| Temperature resolution | |
| Temperature accuracy | |
| Insulation 50V | |
| Insulation 50V Resolution | |
| Insulation 50V Accuracy | |
| Insulation 100V | |
| Insulation 100V Resolution | |
| Insulation 100V Accuracy | |
| Short circuit current | |
| Over-range indication | |
| True RMS Measurements | |
| AC Bandwidth | |
| Digital Display | |
| Continuity | |
| PI = IR10min/IR1min | |
| Diode test | |
| Bargraph | |
| Bluetooth | |
| Records Events and Trends | |
| Brand | |
| SKU |
Features :
CAT IV 600V and CAT III 1000V
IP65 double moulded rugged waterproof housing
5 insulation test ranges 50V, 100V, 250V, 500V, 1000V
Insulation Resistance up to 5GΩ
50 000 count with analogue bargraph backlit LCD display
Measures AC and DC voltage up to 1000V
Measures AC and DC current up to 10A
Temperature measurement from -50⁰C to 1200⁰C
Capacitance to 10mF
Frequency to 10MHz
Dielectric Absorption Ratio (DAR)
Polarization Index (PI)
Low Pass Filter for measurement of variable frequency drive (VFD)
Auto discharge of voltage test signal
Peak Hold function for Voltage and Current measurements
Download stored data to iOS or Android App via Bluetooth
Continuity buzzer
Min/Max and Data Hold function
Auto Power Off
