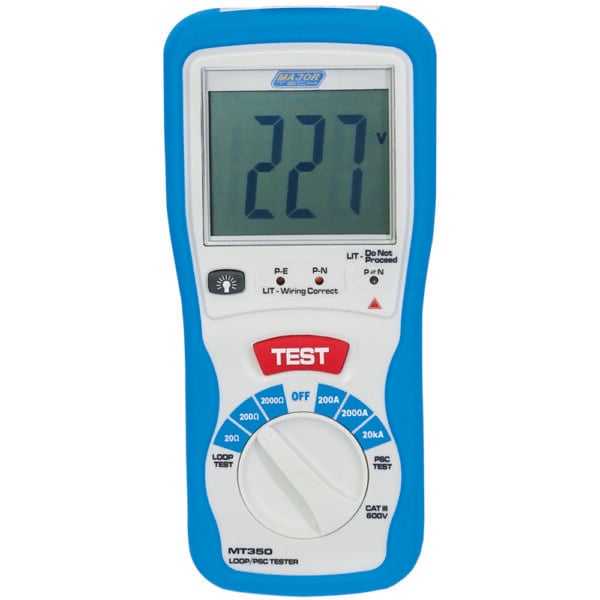

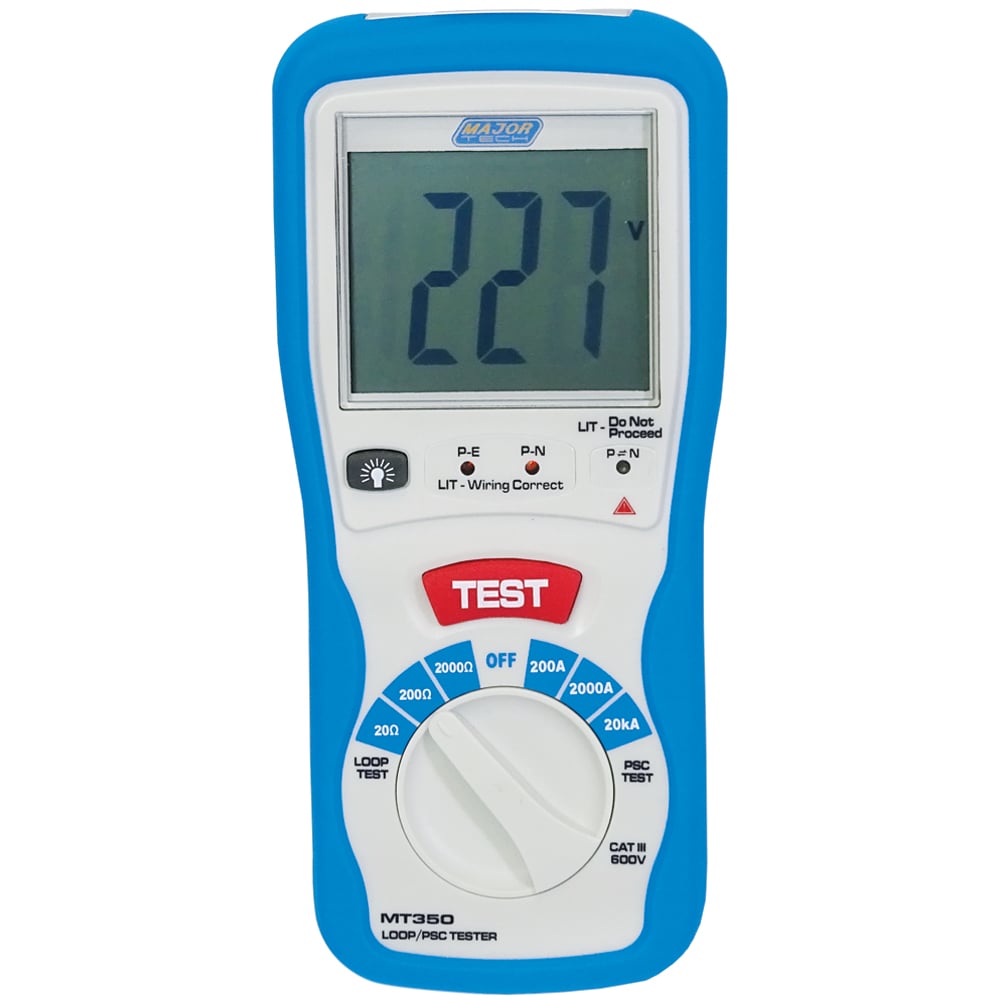

Out of stockThe MT350 is a handheld microprocessor controlled Loop Impedance and PSC Tester, which includes 3 loop impedance measuring ranges capable of measurements from any point in the installation for comprehensive testing of distribution systems. The MT350 gives a direct readout of PSC and earth fault current to a maximum of 20kA in 3 measuring ranges. Other features include 3 LED’s for checking the correct wiring status of the circuit under test and the automatic lockout if the resistors overheat. The meter is supplied in double injection rubber housing.
Accessories:
Carrying Case
Distribution Board Test Leads
Magnetic Strip
Croc Clips
Plug Cord with IEC Connectors
6 x AA Batteries
Instruction Manual
Out of stock
| Weight | 1.35 kg |
|---|---|
| Dimensions | 243 × 76 × 166 mm |
| Loop Range | |
| Loop resolution | |
| Loop accuracy | |
| PSC/PFC | |
| PSC/PFC resolution | |
| PSC/PFC accuracy | |
| Voltage | |
| Voltage accuracy | |
| Test Current | |
| Frequency Response | |
| Display | |
| Enclosure | |
| Low battery indication | |
| Power Supply | |
| Weight | |
| Dimensions | |
| Brand | |
| SKU |
Features :
CAT III 600V and CAT II 1000V
Custom microprocessor controlled for highest accuracy and reliability
Loop impedance of 2000Ω range measurement is carried out with low test current (15mA)
Automatic Lock-Out if Test Resistor Overheats
Direct readout of Prospective Short Circuit Current and Earth Fault Current
Measures low loop impedance of 0.01Ω
3 LED’s for checking correct wiring status
Safe voltage measurement function
Visual indication of reversed phase and neutral at wiring socket
Double injection rubber housing
