Technical
Type of Low Voltage Distribution System:
TN-S
TN-C
Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
230 / 400 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 275 V
Temporary Overvoltage Test Value (UT):
337 V
Rated Service Short-Circuit Breaking Capacity (Ics):
50 kA
Discharge Current:
Nominal (8 / 20 µs) 5 kA
I (max, 8 / 20 µs) 20 kA
Short Circuit Withstand Icc:
50 kA
Arrester Class:
II
Number of Protected Poles:
1
Number of Poles:
1P
Transmission Standard:
Optic
Version:
Fixed
Options Provided:
Residential or other where accurate protection is needed.
Preventive Maintenance Feature:
No
Status Indicator:
Yes
Fuse Size:
1 modular spacing
Cross-Section (Across):
Maximum Conductor Solid-Stranded 25 mm²
Maximum Conductor Flexible 16 mm²
Electrical
Voltage Protection Level ( Up):
1 kV

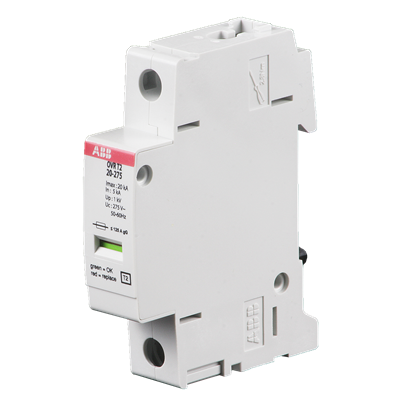

2CTB804200R1100
| Dimensions | 58 × 17 × 88 mm |
|---|
