Available for Quotation
Out of stock
Out of stock
Technical
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 3 kA
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
20000 AC cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
3
Number of Poles:
3P
Actuator Marking:
I / O
Actuator Material:
Insulation Group II, Black, Sealable
Accessories Available:
Yes
Connecting Capacity:
Flexible with Ferrule 0.75 … 25 mm²
Flexible 0.75 … 25 mm²
Rigid 0.75 … 25 mm²
Stranded 0.75 … 25 mm²
Actuator Type:
Toggle
Electrical
Tripping Characteristic:
C
Rated Operational Voltage:
acc. to IEC 60898-1 400 V
acc. to IEC 60947-2 400 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
25 A
Rated Short-Circuit Capacity:
(400 V AC) 3 kA
(400 V) 3 kA
Rated Conditional Short-Circuit Current (Inc):
(230 V) 3 kA
(400 V) 3 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
at Rated Operating Conditions per Pole 3.2 W
Overvoltage Category:
III

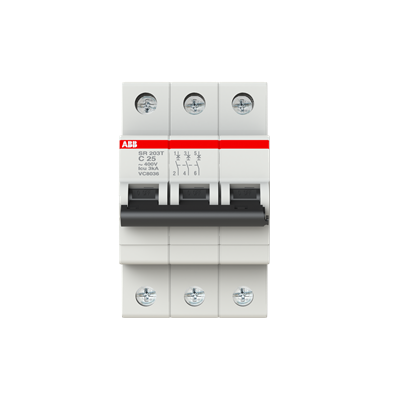

2CDS233070R0254
| Dimensions | 69 × 52 × 85 mm |
|---|
